- resistant to a multitude of
- fuels
- mineral oils
- greases
- weak bases
- weak acids
- UR-tested
- Protection classification:
- IP 66 with outer seal
- Threaded connection:
- metric to EN 60423
- Each unit includes 1 safety opener.

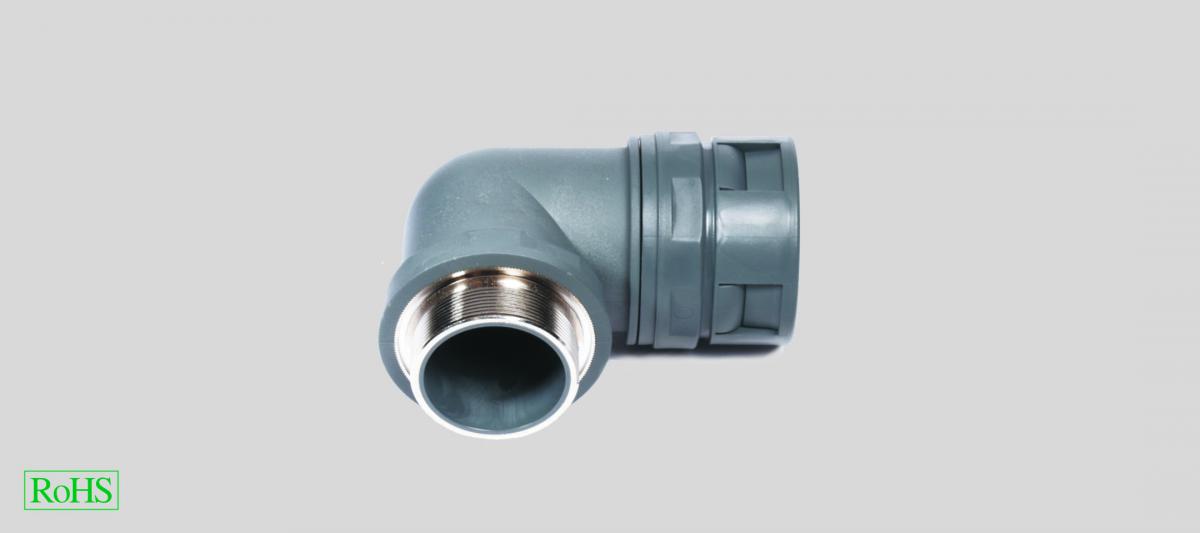

- Quick-insert glands with metallic male thread for a reliable, quick connection.
- Suitable for parallel-coiled HELUcond protection tubes.
- Plant and machine construction
- Robot construction
- Automation technology
- Vehicle construction and shipbuilding
- Rail technology
- Installation technology
- Control cabinet construction
метрическая резьба
|
Artikel-Nr. grau |
Artikel-Nr. schwarz |
Größe Metrisch |
Passend zu NW |
Gewinde- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
920247 |
920256 |
M12 x 1,5 |
10,0 |
10,0 |
50 |
496,10 |
466,30 |
436,60 |
|
920248 |
920257 |
M16 x 1,5 |
10,0 |
10,5 |
50 |
514,80 |
483,90 |
453,00 |
|
920249 |
920258 |
M16 x 1,5 |
12,0 |
10,5 |
50 |
561,60 |
527,90 |
494,20 |
|
920250 |
920259 |
M20 x 1,5 |
17,0 |
12,0 |
50 |
655,20 |
615,90 |
576,60 |
|
920251 |
920260 |
M25 x 1,5 |
21,0 / 23,0 |
15,0 |
50 |
842,40 |
791,90 |
741,30 |
|
920252 |
920261 |
M32 x 1,5 |
29,0 |
15,0 |
25 |
936,00 |
879,80 |
823,70 |
|
920253 |
920262 |
M40 x 1,5 |
36,0 / 37,0 |
16,0 |
25 |
1497,60 |
1407,70 |
1317,90 |
|
920254 |
920263 |
M50 x 1,5 |
48,0 / 50,0 |
16,0 |
10 |
1684,80 |
1583,70 |
1482,60 |
|
920255 |
920264 |
M63 x 1,5 |
48,0 / 50,0 |
16,0 |
10 |
2152,80 |
2023,60 |
1894,50 |
