- safe field effect
- simple assembly
- large cross-sections
- unlimited conductivity
- immediately operational

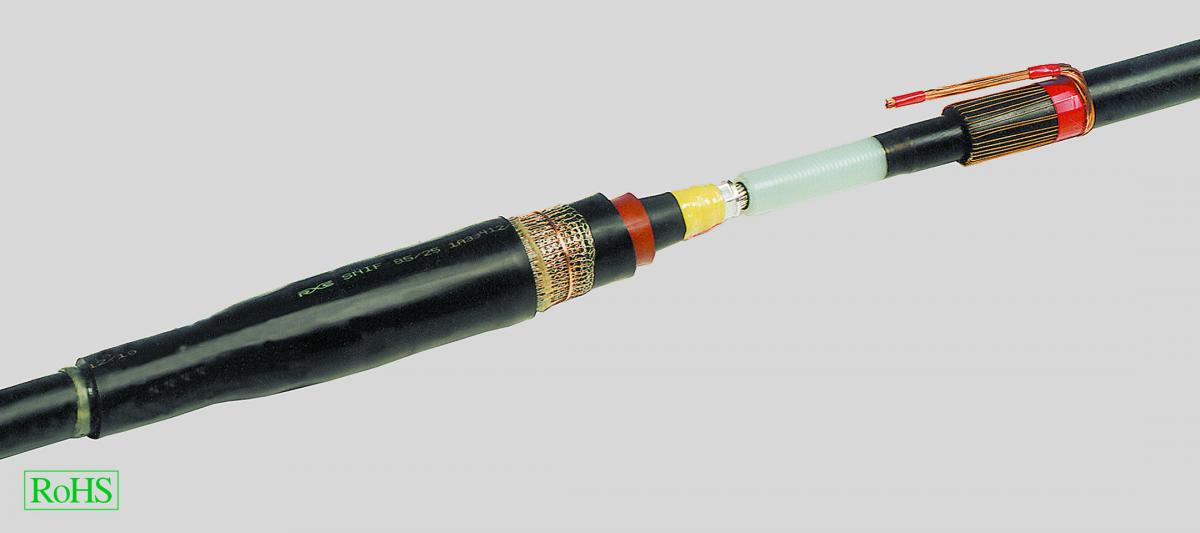

- The centre tension transition sleeve suitable for connecting all single-core plastic power cables with external conductor layer up to 18/30(36)kV.
- For connecting cables with differing cross-sections, conductor materials and cable designs with regard to external conductor layer and sheathing.
Индуктор
|
Artikel-Nr. |
Typ |
Nennspannung Uo/U(Um) |
Querschnitt mm² |
Durchmesser von - bis mm |
VPE |
Netto EUR/Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
1 |
2 - 5 |
6 - 10 |
||||||
|
93107 |
MSVM-S12/1 |
6/10kV |
35,0 - 95,0 |
13,2 - 20,0 |
1 |
84,80 |
81,30 |
77,70 |
|
93108 |
MSVM-S12/1 |
6/10kV |
95,0 - 240,0 |
18,2 - 25,0 |
1 |
97,80 |
93,70 |
89,60 |
|
93109 |
MSVM-S12/1 |
6/10kV |
150,0 - 300,0 |
20,9 - 35,0 |
1 |
111,80 |
107,20 |
102,50 |
|
93110 |
MSVM-S12/1 |
6/10kV |
300,0 - 400,0 |
28,6 - 45,0 |
1 |
134,20 |
128,70 |
123,10 |
|
93111 |
MSVM-S12/1 |
6/10kV |
500,0 - 800,0 |
28,6 - 60,0 |
1 |
198,70 |
190,40 |
182,10 |
|
93117 |
MSVM-S24/1 |
12/20kV |
10,0 - 35,0 |
13,2 - 15,0 |
1 |
105,20 |
100,80 |
96,40 |
|
93118 |
MSVM-S24/1 |
12/20kV |
50,0 - 150,0 |
18,2 - 25,0 |
1 |
113,80 |
109,10 |
104,40 |
|
93119 |
MSVM-S24/1 |
12/20kV |
70,0 - 240,0 |
20,9 - 30,0 |
1 |
117,70 |
112,80 |
107,90 |
|
93120 |
MSVM-S24/1 |
12/20kV |
150,0 - 300,0 |
24,2 - 35,0 |
1 |
152,10 |
145,70 |
139,30 |
|
93379 |
MSVM-S24/1 |
12/20kV |
400,0 - 630,0 |
28,6 - 45,0 |
1 |
213,10 |
204,20 |
195,20 |
|
93398 |
MSVM-S24/1 |
12/20kV |
630,0 - 1000,0 |
28,6 - 45,0 |
1 |
262,50 |
251,50 |
240,50 |
|
93121 |
MSVM-S36/1 |
18/30kV |
35,0 - 70,0 |
20,9 - 18,0 |
1 |
123,60 |
118,50 |
113,40 |
|
93122 |
MSVM-S36/1 |
18/30kV |
50,0 - 150,0 |
24,2 - 25,0 |
1 |
133,90 |
128,30 |
122,80 |
|
93123 |
MSVM-S36/1 |
18/30kV |
150,0 - 300,0 |
28,6 - 35,0 |
1 |
167,90 |
160,90 |
153,90 |
|
93124 |
MSVM-S36/1 |
18/30kV |
300,0 - 500,0 |
28,6 - 45,0 |
1 |
227,50 |
218,00 |
208,40 |
