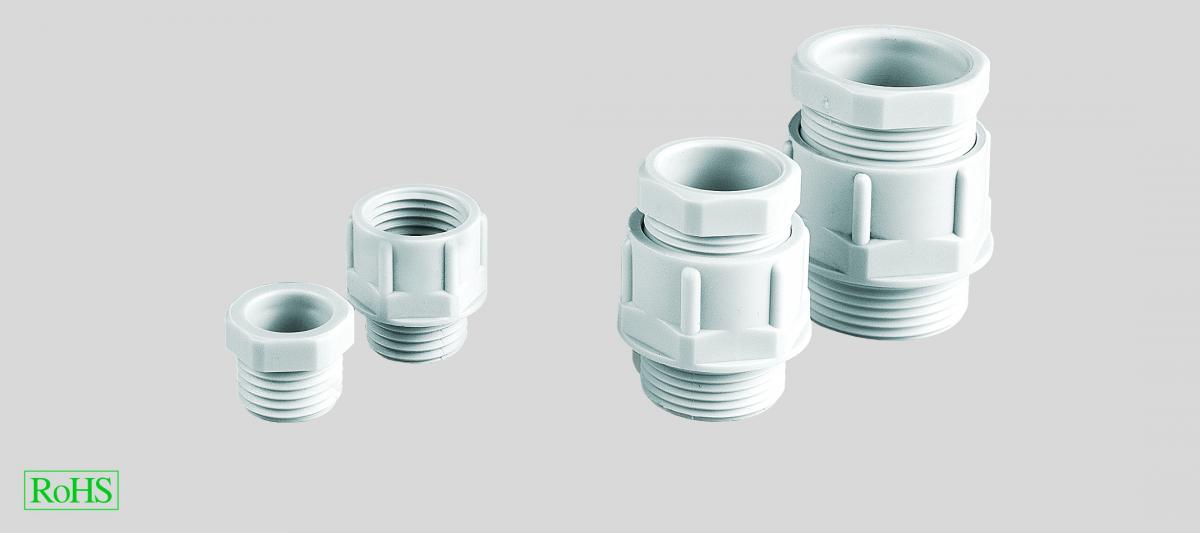

- The polyamide cable gland to DIN 46320.
- Plant and machine construction
- Robot construction
- Automation technology
- Vehicle construction and shipbuilding
- Rail technology
- Installation technology
- Control cabinet construction
метрическая резьба
|
Artikel-Nr. hellgrau RAL 7035 |
Größe Metr. |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
92819 |
M12 x 1,5 |
5,0 - 8,0 |
11,0 |
19 |
50 |
42,20 |
41,00 |
39,70 |
|
92820 |
M16 x 1,5 |
7,0 - 9,0 |
11,0 |
19 |
50 |
42,90 |
41,70 |
40,40 |
|
92821 |
M20 x 1,5 |
8,0 - 12,0 |
11,0 |
24 |
50 |
46,80 |
45,40 |
44,00 |
|
92823 |
M25 x 1,5 |
11,0 - 14,0 |
11,0 |
27 |
50 |
72,40 |
70,10 |
67,80 |
|
92824 |
M25 x 1,5 |
13,0 - 17,0 |
11,0 |
32 |
50 |
78,60 |
76,30 |
73,80 |
|
92825 |
M32 x 1,5 |
18,0 - 26,0 |
11,0 |
42 |
10 |
169,90 |
164,60 |
159,30 |
|
92826 |
M40 x 1,5 |
23,0 - 26,0 |
11,0 |
42 |
10 |
231,90 |
230,30 |
222,80 |
|
92827 |
M50 x 1,5 |
25,0 - 33,0 |
11,0 |
53 |
10 |
403,70 |
394,30 |
386,30 |
|
92828 |
M50 x 1,5 |
32,0 - 40,0 |
11,0 |
60 |
5 |
508,90 |
493,10 |
477,10 |
|
92829 |
M63 x 1,5 |
38,0 - 44,0 |
11,0 |
65 |
5 |
601,20 |
582,50 |
563,80 |
PG - резьба
|
Artikel-Nr. hellgrau RAL 7035 |
Größe PG |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
90559 |
7 |
3,0 - 6,0 |
8,0 |
15 |
50 |
14,50 |
14,00 |
13,60 |
|
90560 |
9 |
4,5 - 7,0 |
8,0 |
19 |
50 |
17,40 |
16,70 |
16,00 |
|
90561 |
11 |
6,0 - 9,0 |
8,0 |
22 |
50 |
18,10 |
17,40 |
16,70 |
|
90562 |
13,5 |
9,0 - 12,0 |
9,0 |
24 |
50 |
21,60 |
20,40 |
19,20 |
|
90563 |
16 |
11,0 - 14,0 |
10,0 |
27 |
50 |
24,50 |
24,40 |
23,20 |
|
90564 |
21 |
14,0 - 18,0 |
11,0 |
33 |
25 |
39,40 |
38,60 |
37,50 |
|
90565 |
29 |
18,0 - 25,0 |
11,0 |
42 |
25 |
159,00 |
154,10 |
149,30 |
|
90566 |
36 |
25,0 - 32,0 |
13,0 |
53 |
10 |
286,80 |
277,90 |
269,00 |
|
90567 |
42 |
30,0 - 38,0 |
13,0 |
60 / 55 |
5 |
555,30 |
535,90 |
516,40 |
|
90568 |
48 |
34,0 - 42,0 |
14,0 |
65 / 60 |
5 |
662,20 |
639,00 |
615,80 |
