- Code type indicates the required hexagonal clamping insert.
- Part No. 93444 and Part No. 93445 are not standardised.

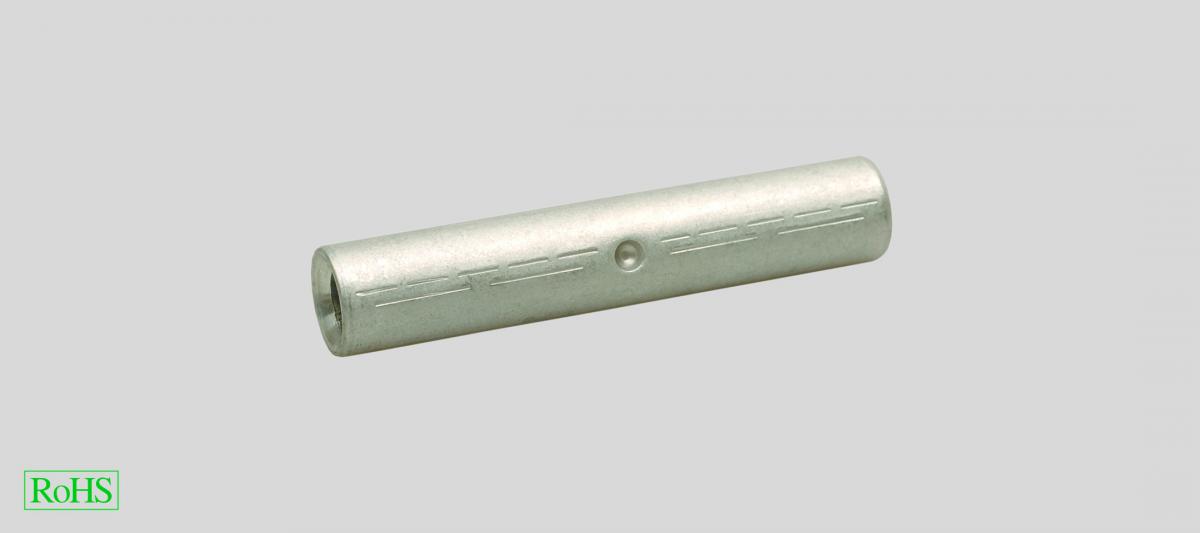

- Clamping connection sleeves for unstrained clamping of conductors built to DIN 46267.
- RM/SM and SE conductor
blank
|
Artikel-Nr. |
Typ |
Querschnitt RM/SM mm² |
Querschnitt SE mm² |
d mm |
l mm |
Kennzahl |
Gewicht kg / 1000 Stück |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
|||||||||
|
93444 |
PV-A 10 |
10,0 |
- |
5,0 |
55,0 |
10,0 |
9,5 |
10 |
148,00 |
136,90 |
125,80 |
|
93445 |
PV-A 16 |
16,0 |
25,0 |
5,8 |
55,0 |
12,0 |
14,0 |
10 |
153,00 |
141,50 |
130,10 |
|
93446 |
PV-A 25 |
25,0 |
35,0 |
6,8 |
70,0 |
12,0 |
16,0 |
10 |
156,40 |
144,70 |
132,90 |
|
93290 |
PV-A 35 |
35,0 |
50,0 |
8,0 |
85,0 |
14,0 |
26,0 |
10 |
162,40 |
150,20 |
138,00 |
|
93291 |
PV-A 50 |
50,0 |
70,0 |
9,8 |
85,0 |
16,0 |
32,0 |
10 |
184,10 |
170,30 |
156,50 |
|
93292 |
PV-A 70 |
70,0 |
95,0 |
11,2 |
105,0 |
18,0 |
53,0 |
10 |
238,60 |
220,70 |
202,80 |
|
93293 |
PV-A 95 |
95,0 |
120,0 |
13,2 |
105,0 |
22,0 |
76,0 |
10 |
324,70 |
300,30 |
276,00 |
|
93294 |
PV-A 120 |
120,0 |
150,0 |
14,7 |
105,0 |
22,0 |
78,0 |
10 |
313,80 |
290,30 |
266,70 |
|
93295 |
PV-A 150 |
150,0 |
185,0 |
16,3 |
125,0 |
25,0 |
107,0 |
10 |
372,20 |
344,30 |
316,40 |
|
93296 |
PV-A 185 |
185,0 |
240,0 |
18,3 |
125,0 |
28,0 |
143,0 |
5 |
552,90 |
511,40 |
470,00 |
|
93297 |
PV-A 240 |
240,0 |
300,0 |
21,0 |
145,0 |
32,0 |
203,0 |
5 |
674,70 |
624,10 |
573,50 |
|
93298 |
PV-A 300 |
300,0 |
- |
23,3 |
145,0 |
34,0 |
222,0 |
1 |
1208,80 |
1118,10 |
1027,50 |
